Organizational Chart

789 592 Comidor BPM Platform

One of the first and most important functions to complete in Comidor is the Organizational Chart. Organizational Chart represents the structure of the company and based on its accuracy ensures that company information flows correctly.

To ensure that the Organizational Chart is fully functional, users/personnel must be added to groups. Therefore it is good practice to add users/personnel prior to creating groups.

Only Comidor System Administrators can create, edit and delete a group in the Organizational Chart. Team Leaders of a group can edit the group(s) they own.

Create an Organizational Chart – Create Group(s)

This refers only to System Administrator Users.

  1. To create a group, go to Modules Menu Icon > Business Management > Organizational Chart
  2. Click on the Actions Icon to create groups

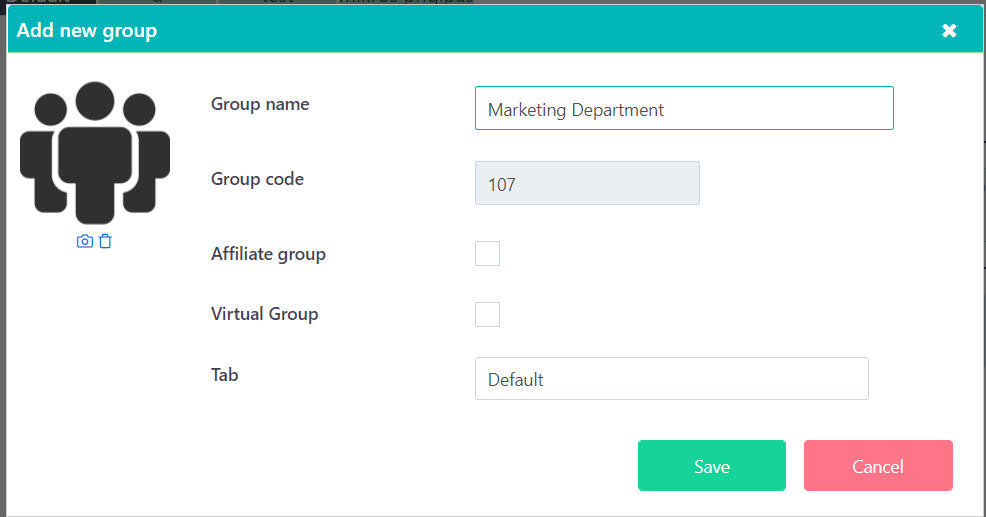

  3. A pop-up window appears.
  4. Add a name for the group, select the type if required (affiliate or virtual – see below) and click Create to create it, Cancel to close the create form or X close the window

organizational chart/comidor low-code bpm platform

There are three (3) types of groups:

  • Group (default type) – an actual company department/group (grey boxes with normal border). All Comidor users can be added to this type of group i.e. the Finance Department
  • Affiliate Group, a group that represents guest users (grey boxes with dotted border). Only guest users can be added and will have access only to public data of the company i.e. external contractors
  • Virtual Group, a group that represents a combination of users from different departments (green boxes). All Comidor users can be added to this type of group e.g. Project “Trade Fair London” or “Football Team”

organizational chart/comidor low-code bpm platform

  1. New groups are added to the top right of the screen. Click on the cross to drag and drop groups below other groups

Add Users

This refers only to System Administrator Users.

To fully utilize the Organizational Chart, users need to be added to groups.

  1. To add a user go to Modules Menu Icon > Business Management > Organizational Chart
  2. Click on the Actions Icon to add a user

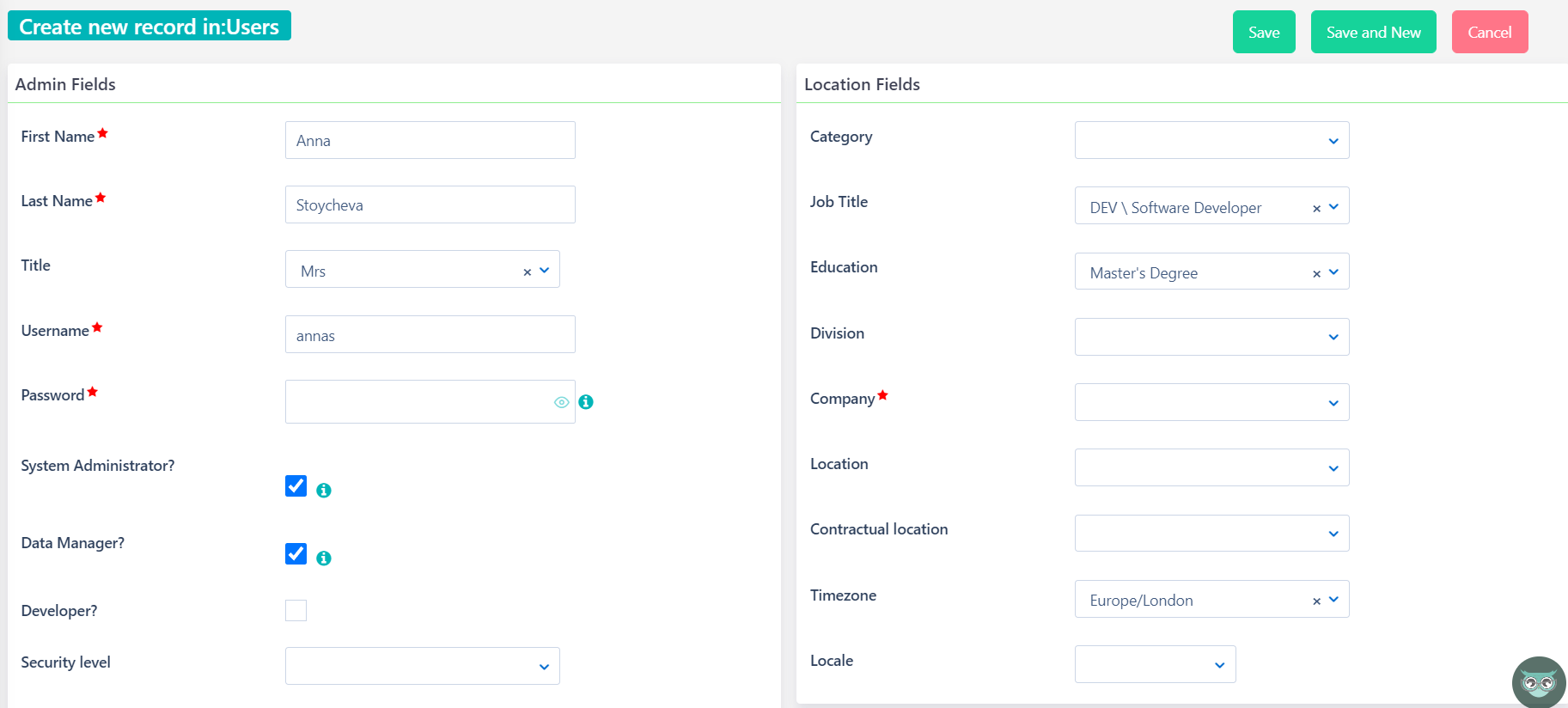

  3. The user’s screen will open (Create Users)

You can also add users in System Administration > User Management > Users.

Add User(s) in Groups

This refers to System Administrator Users and Users who are Team Leaders (only for their team)

  1. Select the users you want to add to the group. Search for users using the Search in the users field
  2. Select the desired User(s).

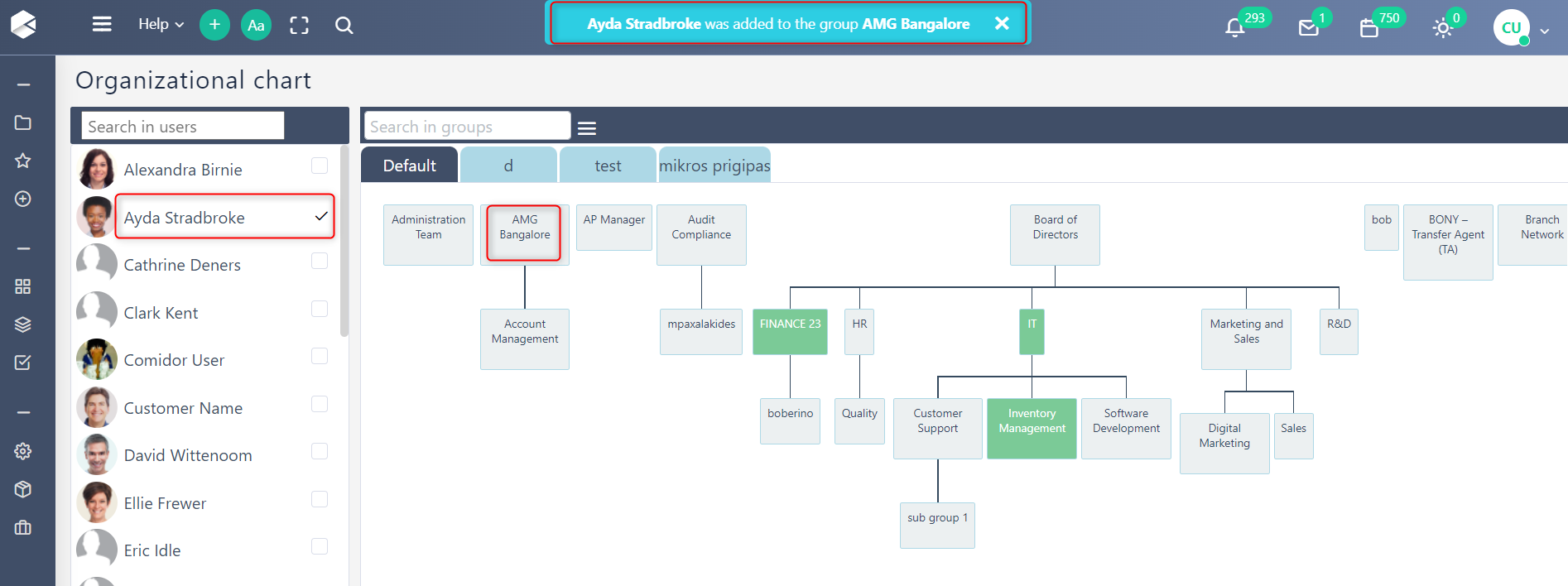

  3. Drag-and-drop the User(s) to the specific group you wish them to participate
  4. After the User(s) are added a confirmation message appears

organizational chart/comidor low-code bpm platform

Managing Users & Groups

Go to Modules Menu Icon > Business Management > Organizational Chart.

View/Search a User

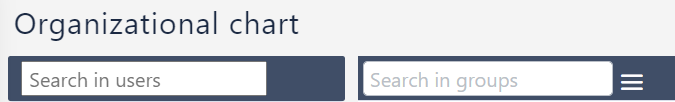

  1. Search for the User you want using the Search box

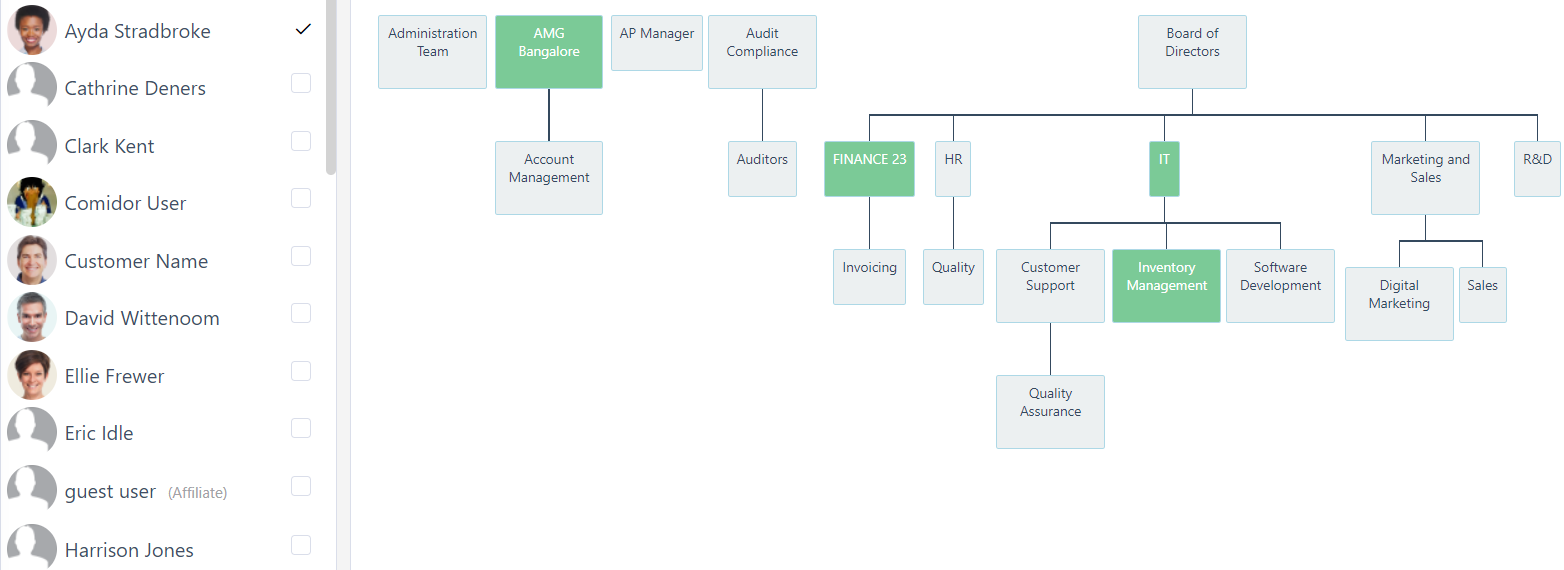

  2. When the box next to the user’s name is ticked, the groups in the organizational chart that the user belongs to are automatically highlighted in green

organizational chart/comidor low-code bpm platform

Search a Group

The Search in groups field can be used to search for a group by name and focus on that group and the group’s sub-groups.

View a Group

  1. Click on the name of the group to view the members

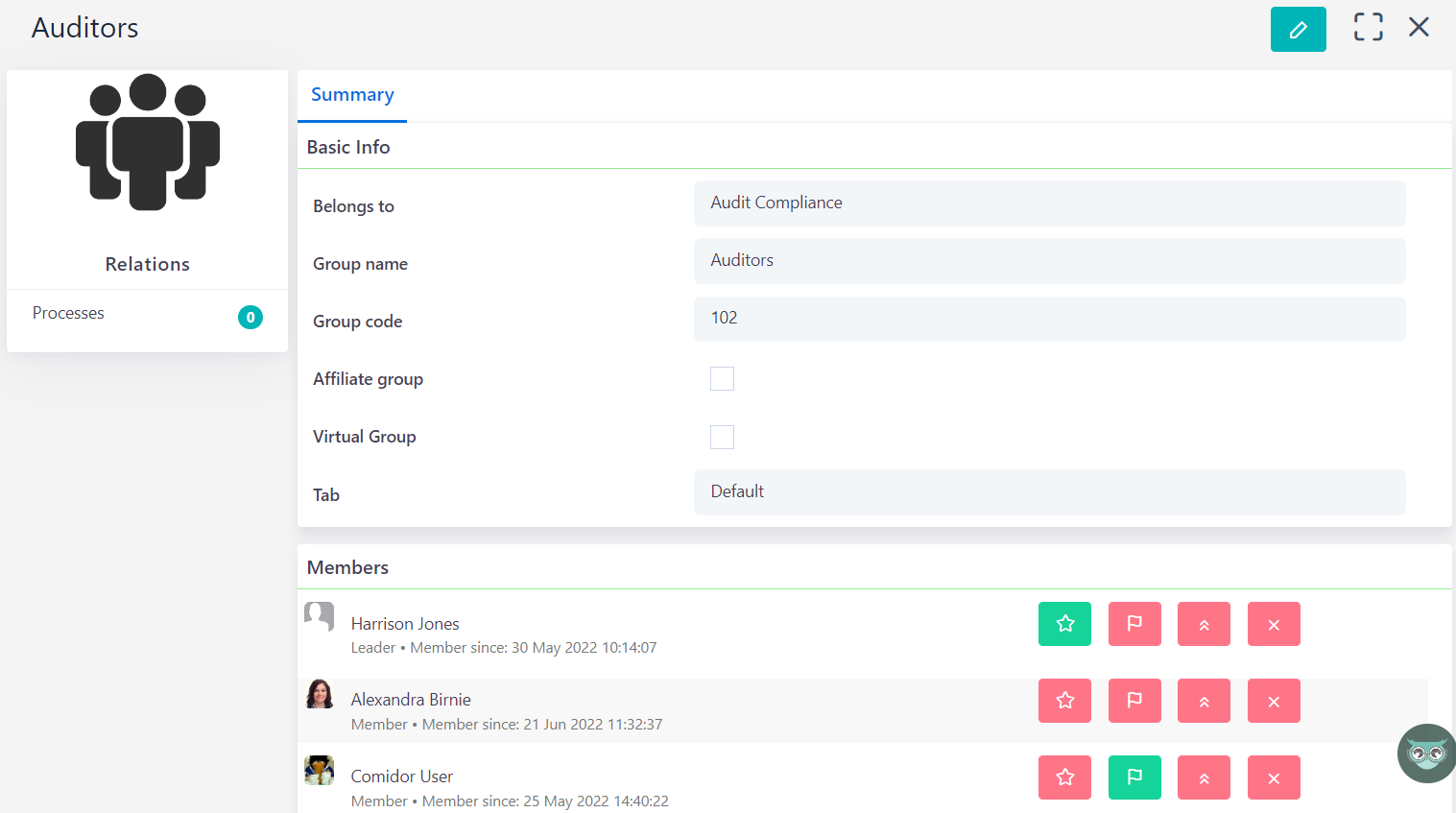

  2. In the view that opens members of the group can be seen
  3. Click the photo icon to add a photo for a specific group
  4. Click on Processes on the left of the screen to view all Process Templates that are supervised/owned by this Group

organizational chart/comidor low-code bpm platform

Delete Member(s) of a Group

This refers to System Administrator Users and Users who are Team Leaders but only for their team.

  1. Click on the name of the group you want to delete member(s) of
  2. In the view that opens, you can see the members of the group

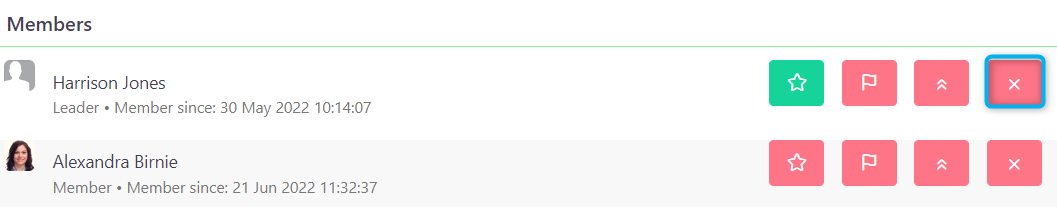

  3. Click on the name of the user you wish to delete and press the delete button ( X )

Add a User as a Team leader (Line Manager)

This refers only to System Administrator Users.

  1. Click on the name of the group you wish to manage
  2. In the view that opens you can see the members of the group

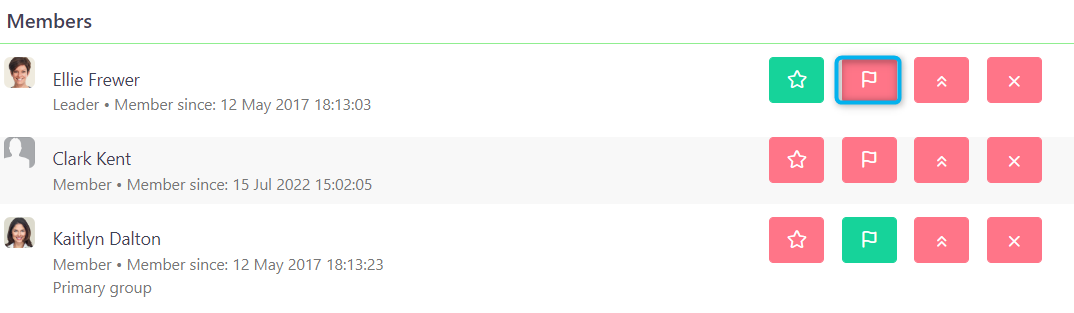

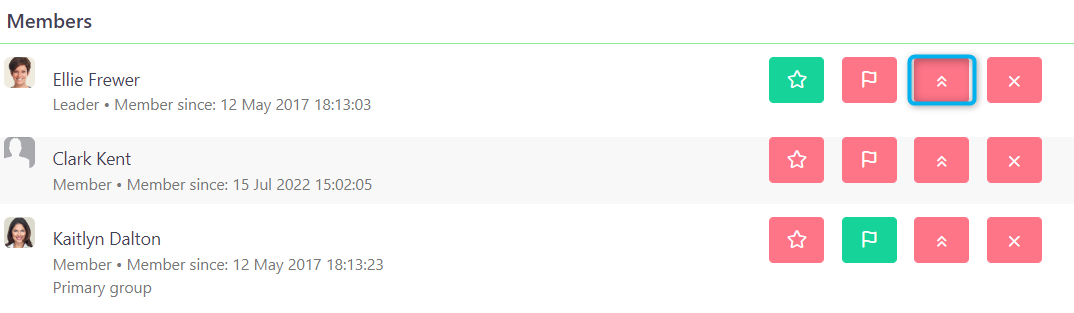

  3. Click on the name of the user and press on the green framed star to make the user a Team Leader

Team Leader functionality appears in Calendar, Workflows and many Reporting Tools.

A star is added next to the user’s name to indicate their status as a team leader.

Remove a User’s Team Leader Status

This refers only to System Administrator Users

  1. Click on the name of the group you wish to manage
  2. In the view that opens you can see the members of the group
  3. Click on the name of the user and click on the red framed star to remove their team leader status

Group’s Action Button

Go to Modules Menu Icon > Business Management > Organizational Chart.

Create sub-group

This refers only to System Administrator Users.

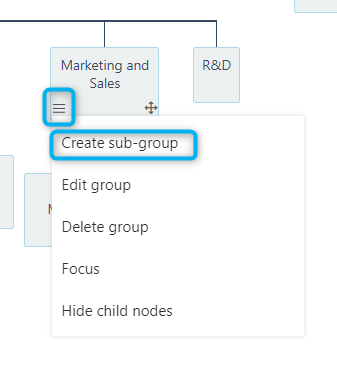

  1. Click on the Actions Icon of the group you want to create a sub-group of
  2. An Add New Group window appears. Add a name for the New Group and click Create/enter to create it or Cancel to close the creation window or close the window (X).

The sub-group will appear on the Organizational Chart under the selected group.

Rename a Group

This refers only to System Administrator Users.

  1. Click on the Actions Icon of the group you want to rename. A pop-up window appears. Add a new name for the Group and click update/enter to rename it or cancel to close the pop-up window or close the window (X)
  2. Alternatively, click on the Group you wish to rename, click the Pencil Icon to edit the Group name. Press Save to update the name or Cancel to cancel the procedure

Delete a Group

This refers only to System Administrator Users.

  1. Click on the Actions button of the group which you want to delete.
  2. A Delete confirmation window appears. Click on Delete to confirm the deletion. Click on Cancel to go back to the Organizational Chart or close the window (X).

Focus on a Group

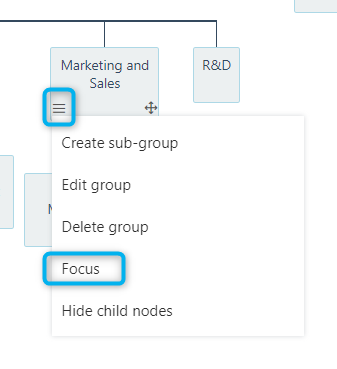

  1. Click on the Actions Icon of the group you want to focus on
  2. Only the selected group with its child nodes appear.

To go back to the previous view click on the Actions Icon to Restore Hidden.

organizational chart/comidor low-code bpm platform

Hide child nodes of a Group

This refers only to System Administrator Users. This refers only to groups that have sub-group(s).

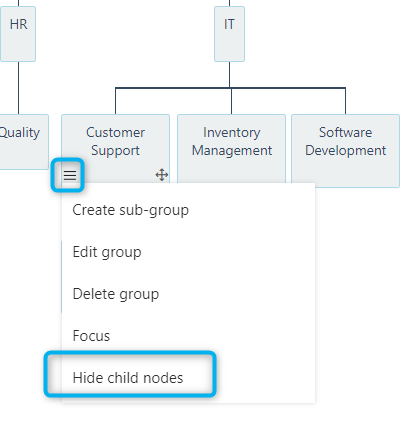

  1. Click on the Actions Icon of the group where you want to hide the child nodes
  2. All the child nodes disappear

To restore hidden nodes click on the main Actions Icon and select Restore Hidden.

Organization Chart Actions Button

  1. Go to Modules Menu Icon > Business Management > Organizational Chart

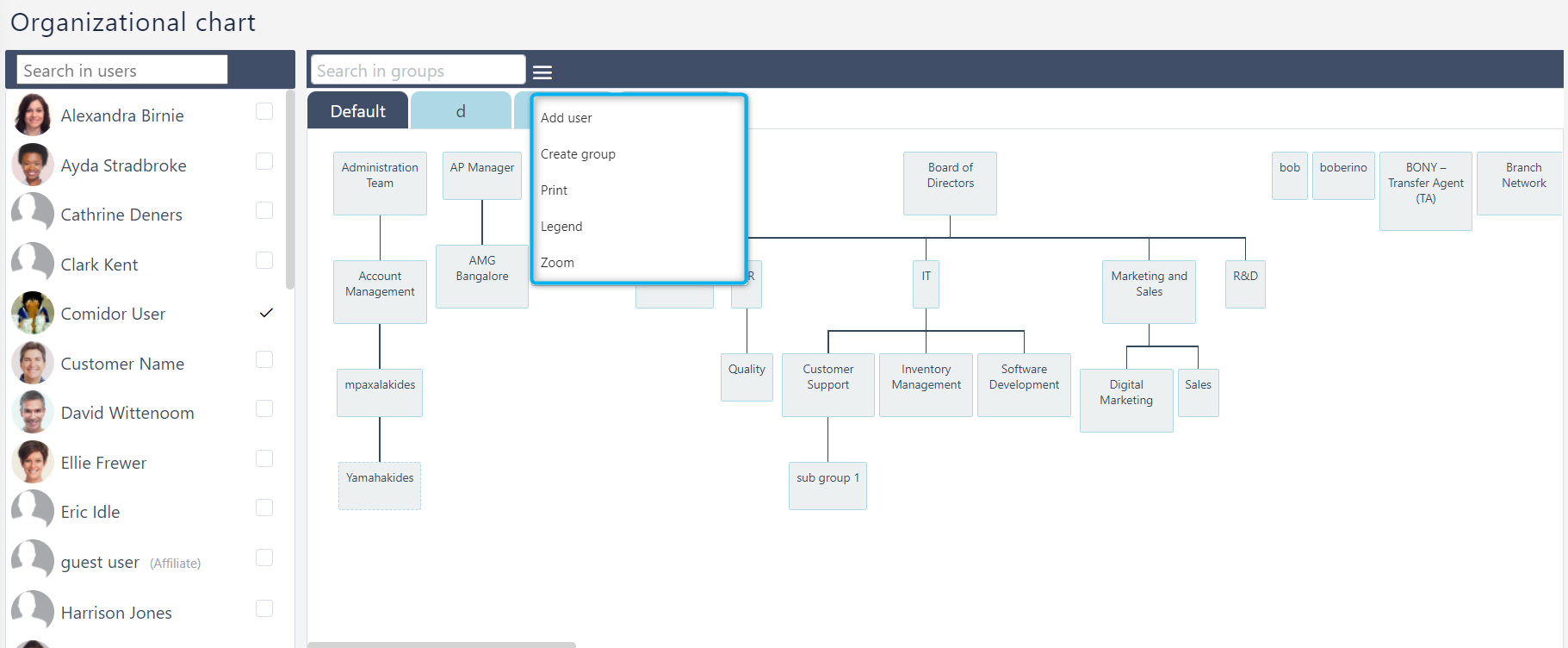

  2. Click on the Actions Icon and a list of options appears:
    • Add user
    • Create a group
    • Print – to open the Organizational Chart in a new tab for printing. Follow your browser’s default printing procedure

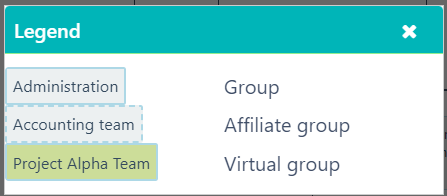

    • Legend – to view the legend of the Organizational Chart in a pop-up window
    • Zoom – to select the size of the Organizational Chart (Very small, Small, Normal, Large)
